Manipulator Models

Industrial Manipulator Models Manufactured by Givens Lifting Systems


There are six basic models of manipulator, named by the moment capacity at Axis 1 (the “shoulder”).

Manipulator ModelMaximum Moment Axis #1Payload (End Effector + Part)Reach (Axis #1 to mEE+PART)
TA515,000 in*lbs120 lbs6-8 ft
M2525,000 in*lbs150 lbs8-10 ft
M3535,000 in*lbs150 lbs9-11 ft
M6060,000 in*lbs330 lbs9-11 ft
M120120,000 in*lbs770 lbs10-12 ft
M200200,000 in*lbs1200 lbs11-14 ft
The lengths for Arm 1 Arm 2 increase in increments of 10″ are available on-the-shelf.
Both arms are typically available on-the-shelf in sizes
50″
60″
70″
80″
90″

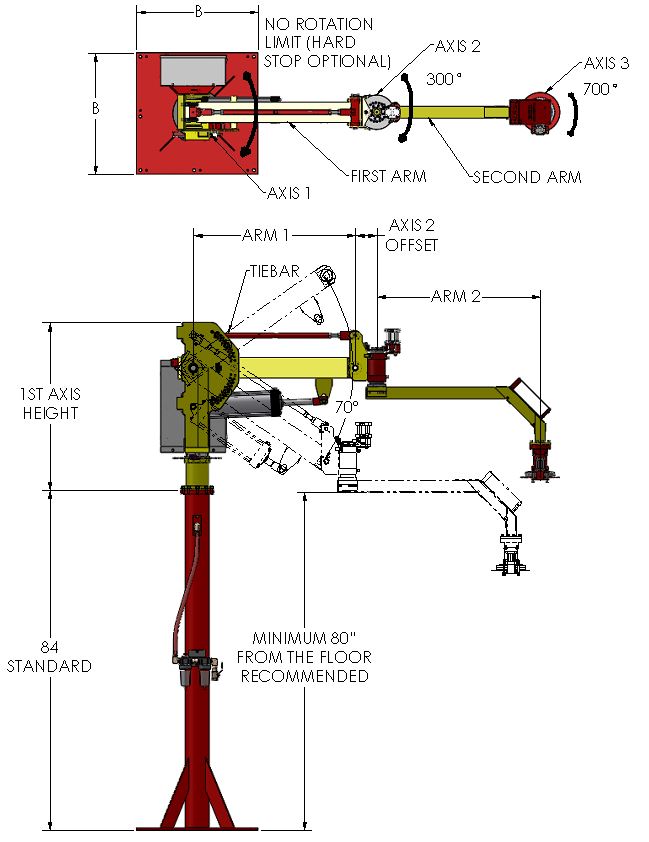

industrial manipulator dimensions and components
ModelBase plate Size ‘B’1st Axis HeightAxis 2 Offset
TA520″ x 20″N/A4.125″
M25/M3530″ x 30″41″5″
M6038″ x 38″42″5.25″
M12048″ x 48″43″7.375″
M20048″ x 48″43″8.25″
Roll-handler end effector above, with roll mandrel, 90 degree rotate, and vertically sliding handlebars. Controls are 100% pneumatic.
Roll-handler end effector above, with roll mandrel, 90 degree rotate, and vertically sliding handlebars. Controls are 100% pneumatic.

Industrial Manipulators in Action


TA5 manipulator models equipped with a tooling gripper by Givens Lifting Systems Inc.
TA5 manipulator equipped with a tooling gripper by Givens Lifting Systems Inc.
M25 industrial manipulator models with a custom Arm 2 and an end effector for gripping cutters in a machining center
M25 manipulator with a custom Arm 2 and an end effector for gripping cutters in a machining center
M35 manipulator models floating a car door by Givens Lifting Systems Inc.
M35 manipulator floating a car door by Givens Lifting Systems Inc.
M35 manipulator models with 90º degree tilt roll handler by Givens Lifting Systems Inc.
M35 manipulator with 90º degree tilt roll handler by Givens Lifting Systems Inc.
M60 industrial manipulator gripping a truck component
M60 manipulator gripping a truck component
M120 manipulator with a very long reach by Givens Lifting Systems Inc.
M120 manipulator with a very long reach by Givens Lifting Systems Inc.
M120 manipulator at NASA at Kennedy Space Center by Givens Lifting Systems Inc.
M120 manipulator at NASA at Kennedy Space Center
M60 manipulator with Instrument Panel by Givens Lifting Systems Inc.
M60 manipulator with Instrument Panel
