Pneumatic STD-B and STD-BL Series

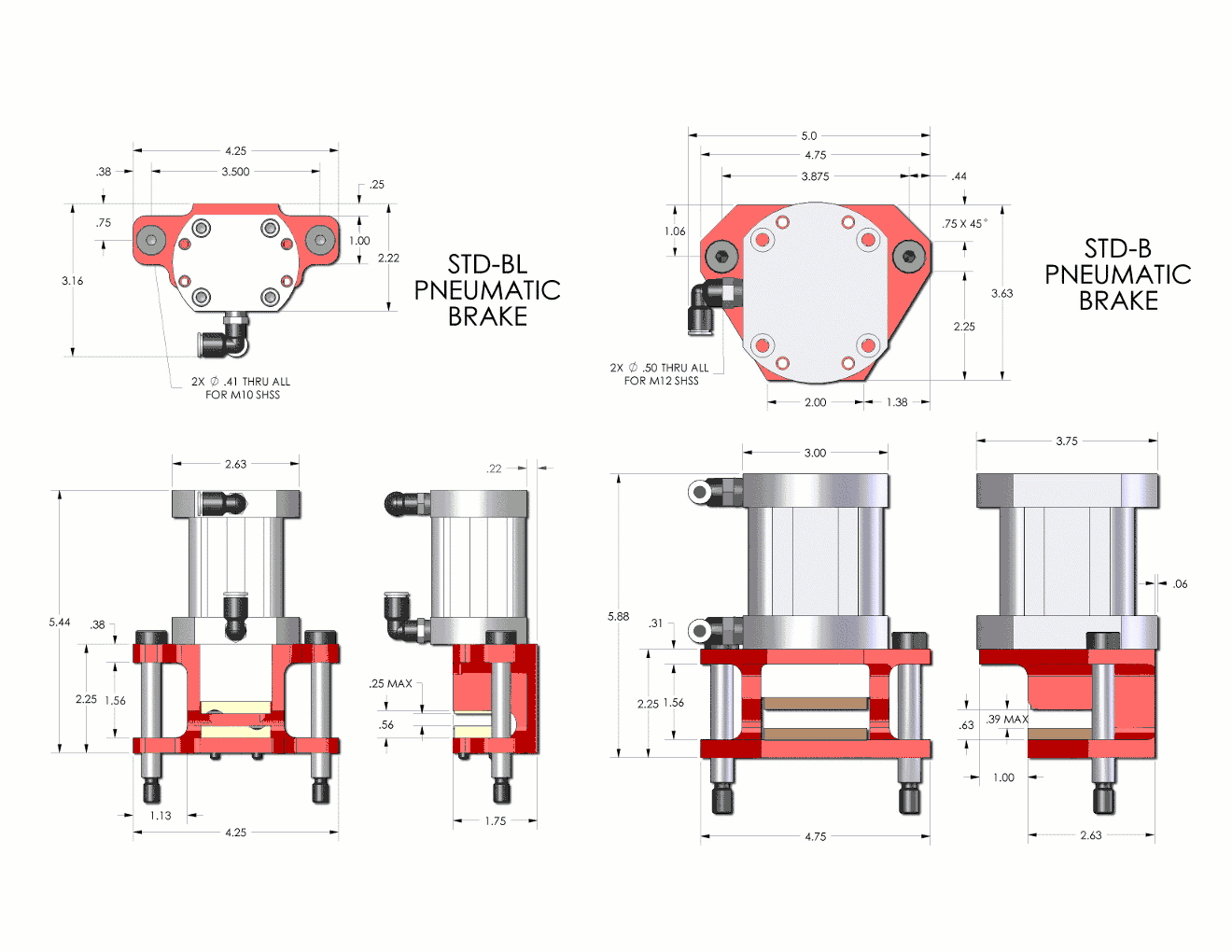

The STD-B and STD-BL series of pneumatic caliper brakes are lightweight floating calipers designed for use on fixed discs. The caliper body is machined and anodized from billet aluminum. The brake pad is sintered metallic.
This style of brakes prevent the rotation of an axis on a fixture, manipulator or lift assist. Designed for static and low speed applications. Our pneumatic brakes incorporate springs in the cylinders so that if there is a loss of air pressure the brakes will retain some clamping force.
Caliper Brakes Specifications
| Brake Model # | Clamping Force @ 100 PSI | Max Disc Thickness | Max Disc Drag @ 100 PSI (μ=0.25) | Max Operating Pressure |
| STD-B | 490 lb | .38″ | 250 lb | 120 psi |
| STD-BL | 175 lb | .19″ | 90 lb | 120 psi |
Brake Torque (in*lbs) = Clamping Force (lb) X Disc Radius (in)
or
Brake Torque (ft*lbs) = ( Clamping Force (lb) X Disc Radius (in) ) / 12
